Product Introduction
IPC0158-S
- Part Number
- IPC0158-S
- Manufacturer/Brand
- Chip Quik Inc.
- Description
- QFN-24/LFCSP-24 0.5MM PITCH 5X
- Category
- Solder Stencils, Templates
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Proto-Advantage IPC
- Quantity
- 2pcs Stock Available.

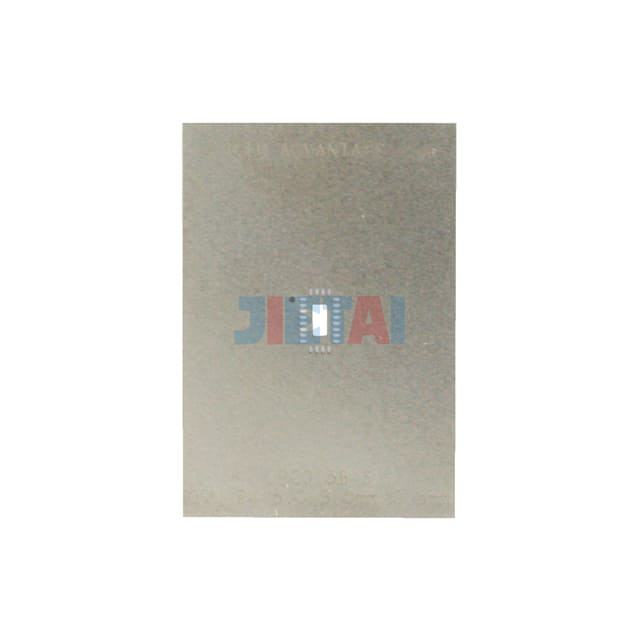

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | IPC0158-S |
| Datasheet | IPC0158-S datasheet |
| Description | QFN-24/LFCSP-24 0.5MM PITCH 5X |
| Manufacturer | Chip Quik Inc. |
| Series | Proto-Advantage IPC |
| Part Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 24 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) |
| Inner Dimension | 0.197" L x 0.118" W (5.00mm x 3.00mm) |
| Thermal Center Pad | 0.065" L x 0.144" W (1.65mm x 3.65mm) |
| Material | Stainless Steel |
