Product Introduction
PA0120-S
- Part Number
- PA0120-S
- Manufacturer/Brand
- Chip Quik Inc.
- Description
- CSP-32/TCSP-32 STENCIL
- Category
- Solder Stencils, Templates
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Proto-Advantage PA
- Quantity
- 847pcs Stock Available.

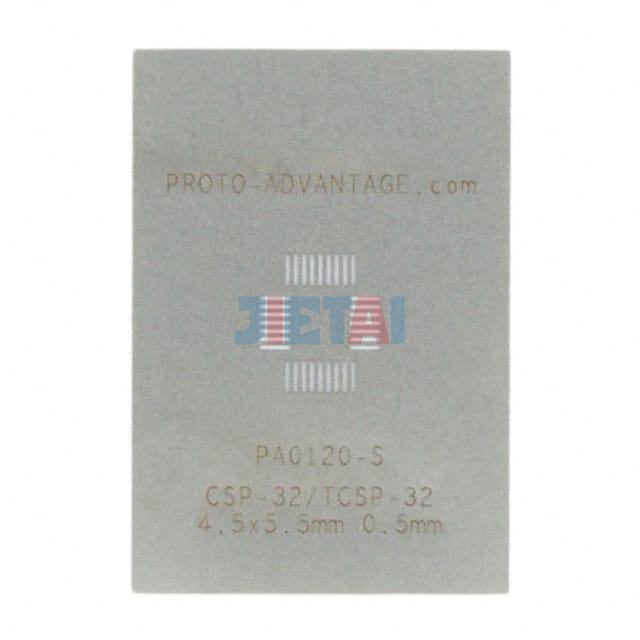

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PA0120-S |
| Datasheet | PA0120-S datasheet |
| Description | CSP-32/TCSP-32 STENCIL |
| Manufacturer | Chip Quik Inc. |
| Series | Proto-Advantage PA |
| Part Status | Active |
| Type | CSP |
| Number of Positions | 32 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) |
| Inner Dimension | 0.177" L x 0.217" W (4.50mm x 5.50mm) |
| Thermal Center Pad | - |
| Material | Stainless Steel |
