Product Introduction
BA6285FP-E2
- Part Number
- BA6285FP-E2
- Manufacturer/Brand
- Rohm Semiconductor
- Description
- IC MOTOR DRIVER 4.5V-15V 24HSOP
- Category
- PMIC - Motor Drivers, Controllers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 7pcs Stock Available.

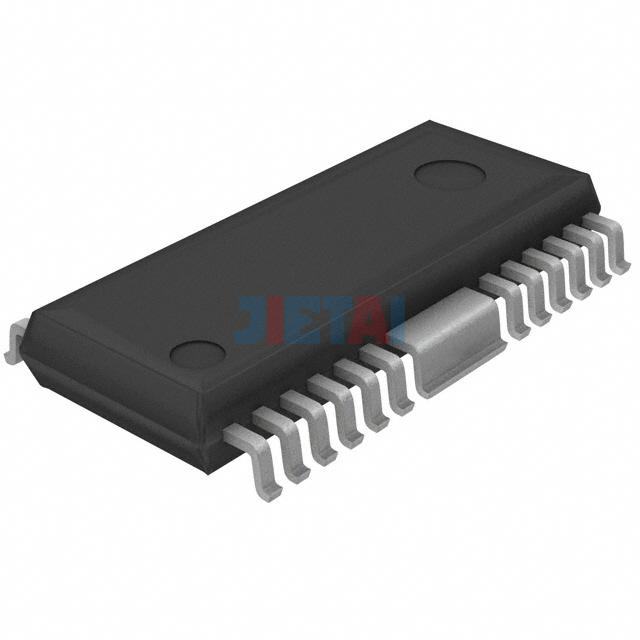

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | BA6285FP-E2 |
| Datasheet | BA6285FP-E2 datasheet |
| Description | IC MOTOR DRIVER 4.5V-15V 24HSOP |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Part Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | On/Off |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | Media Player |
| Current - Output | 1A |
| Voltage - Supply | 4.5V ~ 15V |
| Voltage - Load | 4.5V ~ 15V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOP (0.213", 5.40mm Width) + 2 Heat Tabs |
| Supplier Device Package | 24-HSOP |
