Home / Products / Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers / BD63524AEFV-E2
Product Introduction
BD63524AEFV-E2
- Part Number
- BD63524AEFV-E2
- Manufacturer/Brand
- Rohm Semiconductor
- Description
- IC MTR DRV BIPOLR 8-28V 28HTSSOP
- Category
- PMIC - Motor Drivers, Controllers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 11pcs Stock Available.

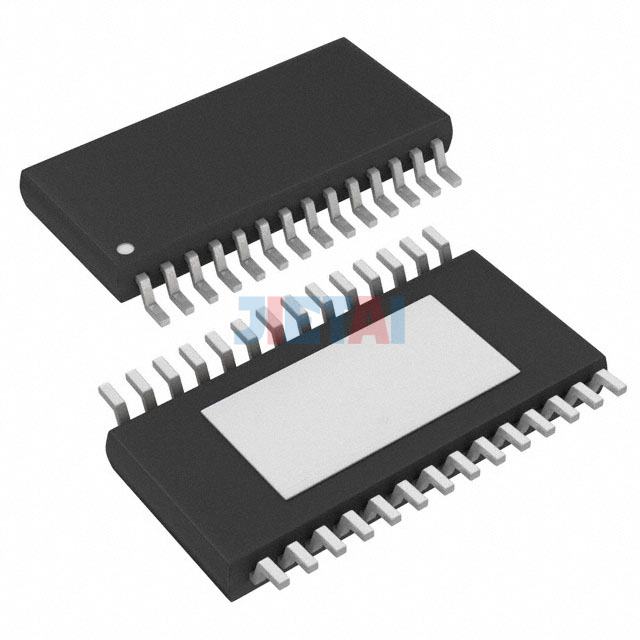

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | BD63524AEFV-E2 |
| Datasheet | BD63524AEFV-E2 datasheet |
| Description | IC MTR DRV BIPOLR 8-28V 28HTSSOP |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Part Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | PWM |
| Technology | DMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 2.5A |
| Voltage - Supply | 8V ~ 28V |
| Voltage - Load | 8V ~ 28V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-VSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP-B |
