Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UPW1E102MHD
Product Introduction
UPW1E102MHD
- Part Number
- UPW1E102MHD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 1000UF 20 25V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UPW
- Quantity
- 19084pcs Stock Available.

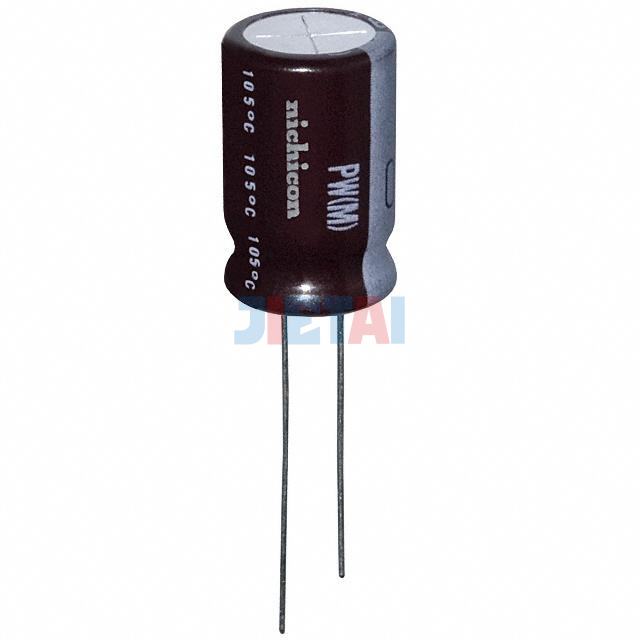

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UPW1E102MHD |
| Datasheet | UPW1E102MHD datasheet |
| Description | CAP ALUM 1000UF 20 25V RADIAL |
| Manufacturer | Nichicon |
| Series | UPW |
| Part Status | Active |
| Capacitance | 1000µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.245A @ 120Hz |
| Ripple Current @ High Frequency | 1.66A @ 100kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
