Product Introduction
DM74S257N
- Part Number
- DM74S257N
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC SELECTOR/MUX QD 2-1LINE 16DIP
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 74S
- Quantity
- 604pcs Stock Available.

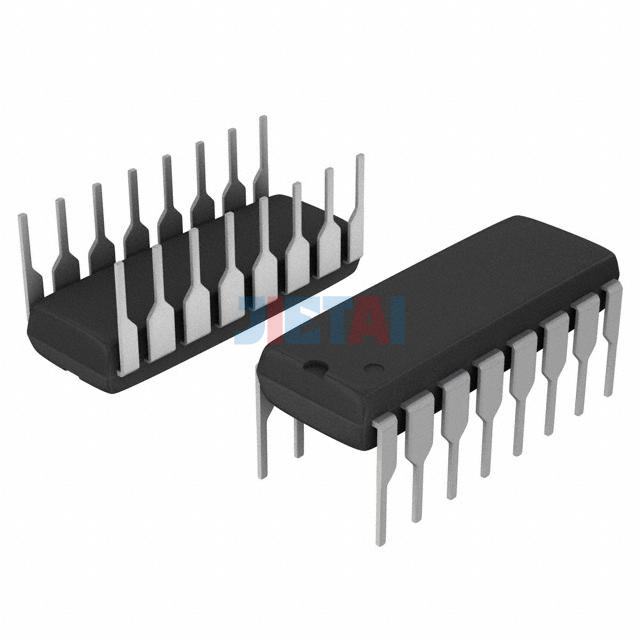

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | DM74S257N |
| Datasheet | DM74S257N datasheet |
| Description | IC SELECTOR/MUX QD 2-1LINE 16DIP |
| Manufacturer | ON Semiconductor |
| Series | 74S |
| Part Status | Obsolete |
| Type | Multiplexer |
| Circuit | 4 x 2:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | 6.5mA, 20mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
