Product Introduction
HD34-24-47PE-059
- Part Number
- HD34-24-47PE-059
- Manufacturer/Brand
- TE Connectivity Deutsch Connectors
- Description
- CONN RCPT HSG MALE 47POS PNL MNT
- Category
- Circular Connectors - Housings
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HD30
- Quantity
- 254pcs Stock Available.

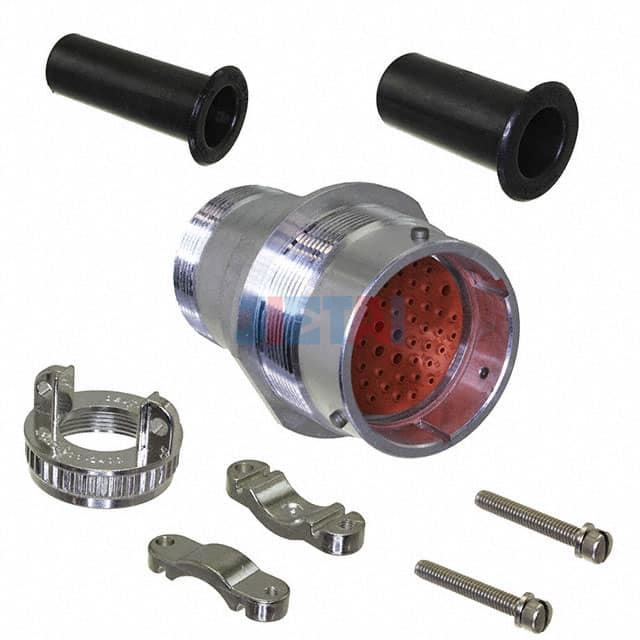

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HD34-24-47PE-059 |
| Datasheet | HD34-24-47PE-059 datasheet |
| Description | CONN RCPT HSG MALE 47POS PNL MNT |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | HD30 |
| Part Status | Active |
| Connector Type | Receptacle Housing |
| Type | For Male Pins |
| Number of Positions | 47 |
| Shell Size - Insert | 24-47 |
| Shell Size, MIL | - |
| Contact Type | Crimp |
| Contact Size | 16 (5), 20 (42) |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Shell Material | Aluminum |
| Shell Finish | - |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Cable Clamp |
| Shielding | Unshielded |
