Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UCS2E220MPD1TD
Product Introduction
UCS2E220MPD1TD
- Part Number
- UCS2E220MPD1TD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 22UF 20 250V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UCS
- Quantity
- 664pcs Stock Available.

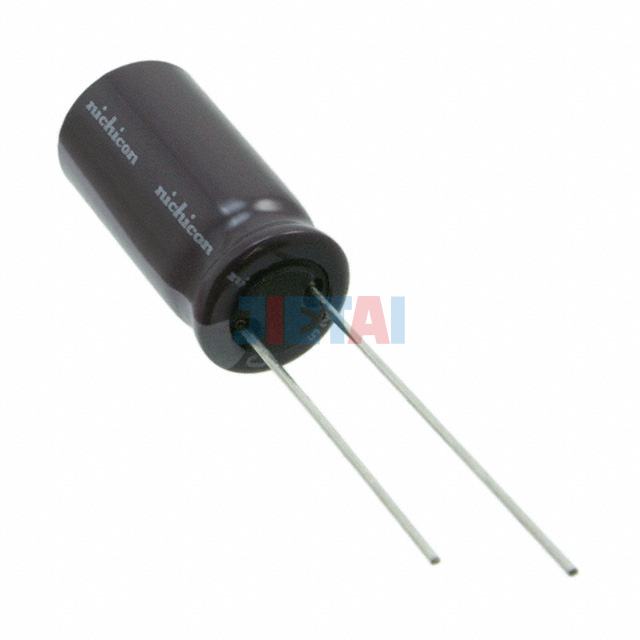

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UCS2E220MPD1TD |
| Datasheet | UCS2E220MPD1TD datasheet |
| Description | CAP ALUM 22UF 20 250V RADIAL |
| Manufacturer | Nichicon |
| Series | UCS |
| Part Status | Active |
| Capacitance | 22µF |
| Tolerance | ±20% |
| Voltage - Rated | 250V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250mA @ 120Hz |
| Ripple Current @ High Frequency | 500mA @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
