Product Introduction

SQ2348ES-T1_GE3

Part Number
SQ2348ES-T1_GE3
Manufacturer/Brand
Vishay Siliconix
Description
MOSFET N-CH 30V 8A SOT-23
Category
Transistors - FETs, MOSFETs - Single
RoHs Status
Lead free / RoHS Compliant
Series
TrenchFET®
Quantity
3144pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

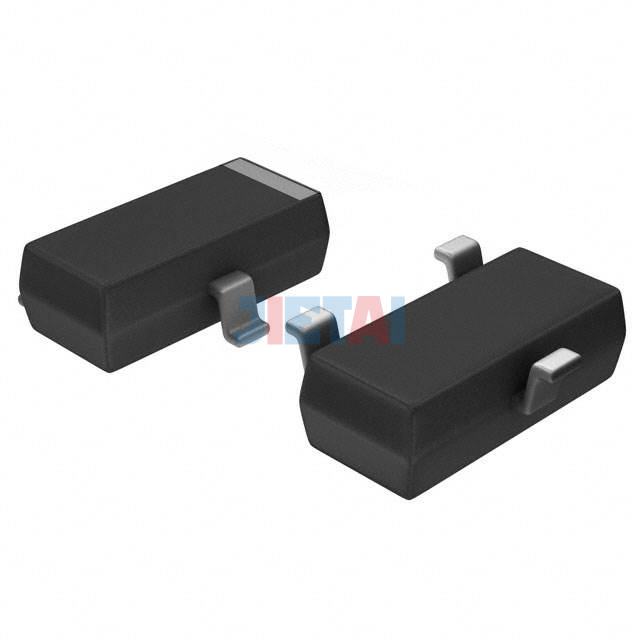

Images are for reference only
See Product Specifications

Product Specifications

Part Number SQ2348ES-T1_GE3
Datasheet SQ2348ES-T1_GE3 datasheet
Description MOSFET N-CH 30V 8A SOT-23
Manufacturer Vishay Siliconix
Series TrenchFET®
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 24 mOhm @ 12A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 14.5nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 540pF @ 15V
FET Feature -
Power Dissipation (Max) 3W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package TO-236
Package / Case TO-236-3, SC-59, SOT-23-3
