Product Introduction
S912XEP100BMAL
- Part Number
- S912XEP100BMAL
- Manufacturer/Brand
- NXP USA Inc.
- Description
- IC MCU 16BIT 1MB FLASH 112LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HCS12X
- Quantity
- 12pcs Stock Available.

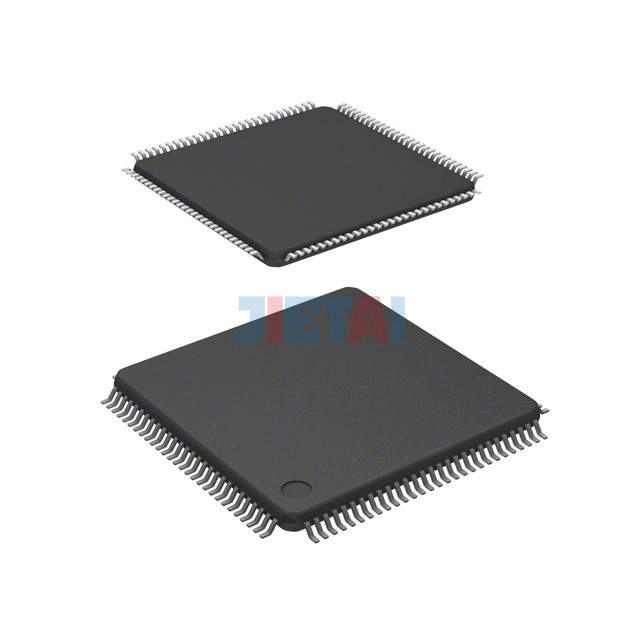

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | S912XEP100BMAL |
| Datasheet | S912XEP100BMAL datasheet |
| Description | IC MCU 16BIT 1MB FLASH 112LQFP |
| Manufacturer | NXP USA Inc. |
| Series | HCS12X |
| Part Status | Active |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 91 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 112-LQFP |
| Base Part Number | 112-LQFP (20x20) |
