Home / Products / Resistors / Chip Resistor - Surface Mount / PTN0603E1502BST1
Product Introduction
PTN0603E1502BST1
- Part Number
- PTN0603E1502BST1
- Manufacturer/Brand
- Vishay Thin Film
- Description
- RES 15K OHM 0.1 0.15W 0603
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PTN
- Quantity
- 2102pcs Stock Available.

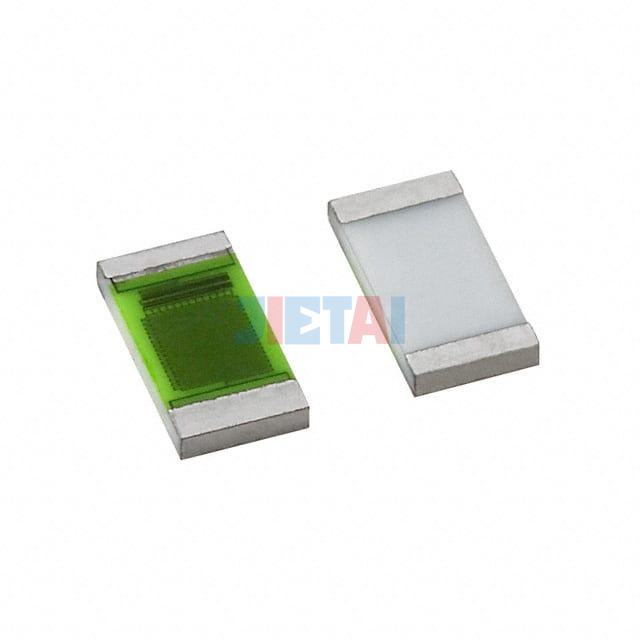

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PTN0603E1502BST1 |
| Datasheet | PTN0603E1502BST1 datasheet |
| Description | RES 15K OHM 0.1 0.15W 0603 |
| Manufacturer | Vishay Thin Film |
| Series | PTN |
| Part Status | Active |
| Resistance | 15 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.15W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.064" L x 0.032" W (1.63mm x 0.81mm) |
| Height - Seated (Max) | 0.020" (0.51mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
