Product Introduction
NR10050T101M
- Part Number
- NR10050T101M
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 100UH 1.2A 271.7 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NR
- Quantity
- 52699pcs Stock Available.

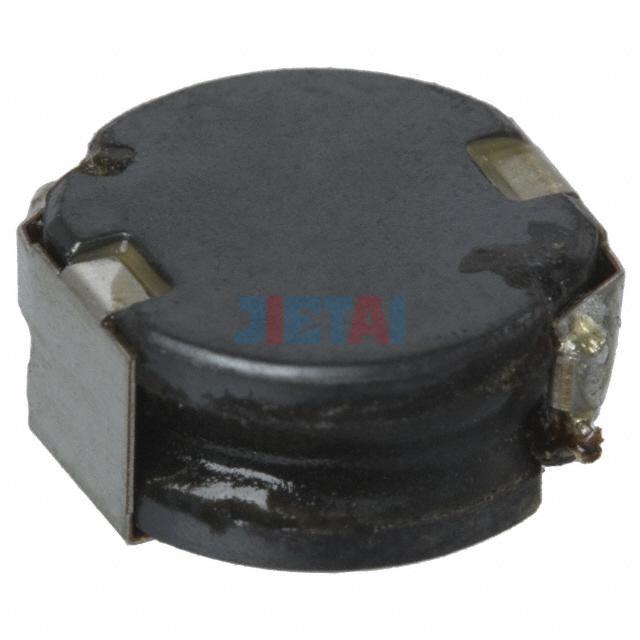

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NR10050T101M |
| Datasheet | NR10050T101M datasheet |
| Description | FIXED IND 100UH 1.2A 271.7 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | NR |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 100µH |
| Tolerance | ±20% |
| Current Rating | 1.2A |
| Current - Saturation | 1.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 271.7 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.6MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.386" W (10.00mm x 9.80mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
