Product Introduction
SMF22A-T13
- Part Number
- SMF22A-T13
- Manufacturer/Brand
- Littelfuse Inc.
- Description
- TVS DIODE 22V 35.5V SOD123FL
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SMF
- Quantity
- 13pcs Stock Available.

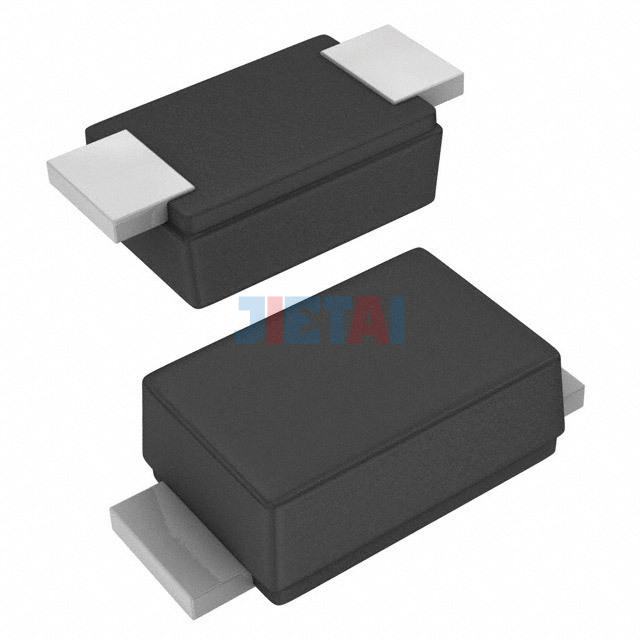

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SMF22A-T13 |
| Datasheet | SMF22A-T13 datasheet |
| Description | TVS DIODE 22V 35.5V SOD123FL |
| Manufacturer | Littelfuse Inc. |
| Series | SMF |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V |
| Current - Peak Pulse (10/1000µs) | 5.6A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123FL |
