Product Introduction
NPA-500B-005G
- Part Number
- NPA-500B-005G
- Manufacturer/Brand
- Amphenol Advanced Sensors
- Description
- SENSOR PRES 5PSI GAUGE SMD
- Category
- Pressure Sensors, Transducers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NPA-500
- Quantity
- 13pcs Stock Available.

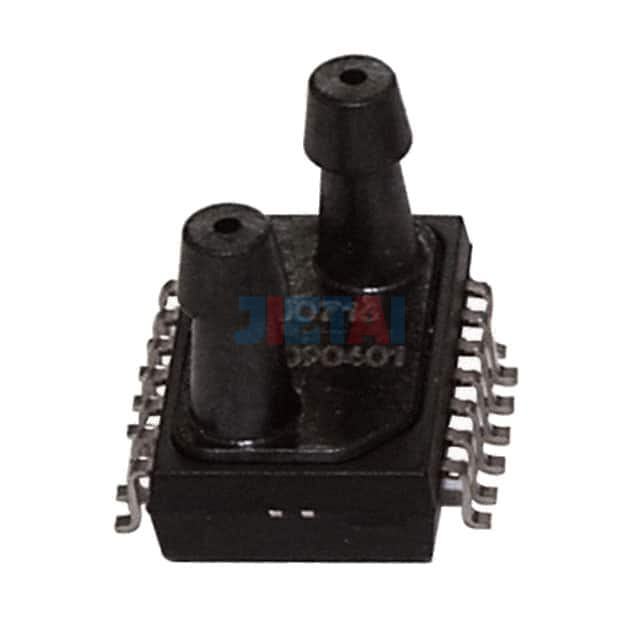

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NPA-500B-005G |
| Datasheet | NPA-500B-005G datasheet |
| Description | SENSOR PRES 5PSI GAUGE SMD |
| Manufacturer | Amphenol Advanced Sensors |
| Series | NPA-500 |
| Part Status | Active |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 5PSI (34.47kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±1.5% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.12" (3mm) Tube, Dual |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | Gull Wing |
| Maximum Pressure | 60PSI (413.69kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 14-SOIC Module, Top Port |
| Supplier Device Package | - |
