Product Introduction
CBC3225T3R3MRV
- Part Number
- CBC3225T3R3MRV
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 3.3UH 850MA 123.5 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CB, C Type
- Quantity
- 5pcs Stock Available.

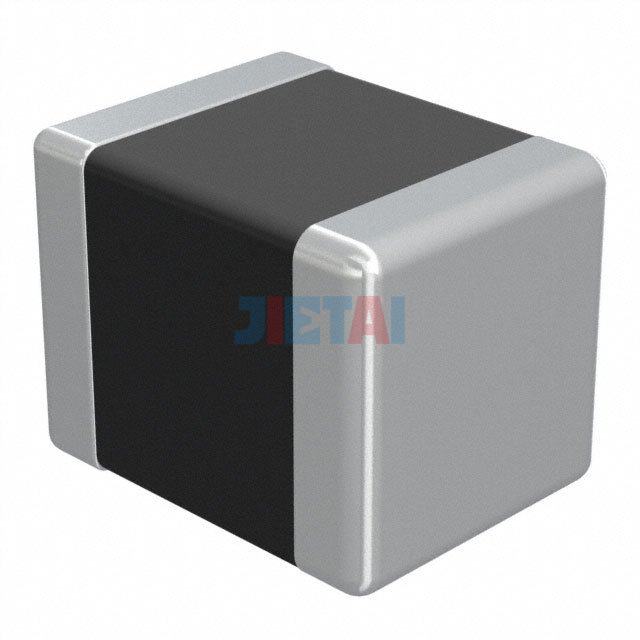

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CBC3225T3R3MRV |
| Datasheet | CBC3225T3R3MRV datasheet |
| Description | FIXED IND 3.3UH 850MA 123.5 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | CB, C Type |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3µH |
| Tolerance | ±20% |
| Current Rating | 850mA |
| Current - Saturation | 2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 123.5 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 160MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.106" (2.70mm) |
