Product Introduction
UPA1E332MHD
- Part Number
- UPA1E332MHD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 3300UF 20 25V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UPA
- Quantity
- 29pcs Stock Available.

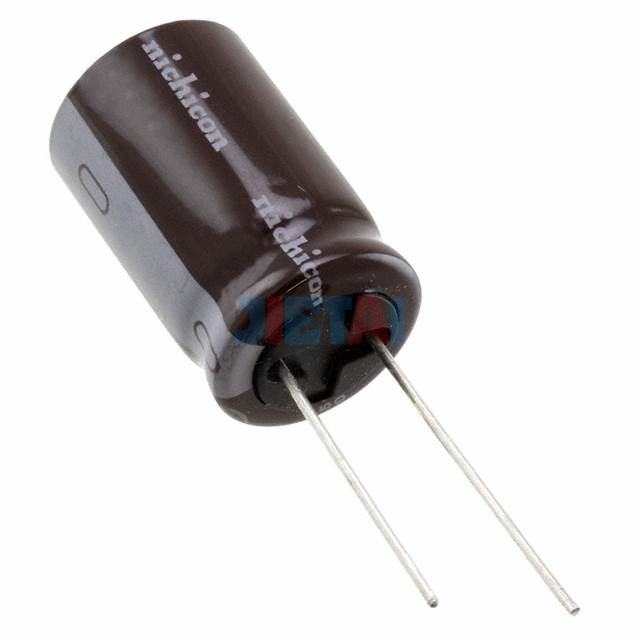

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UPA1E332MHD |
| Datasheet | UPA1E332MHD datasheet |
| Description | CAP ALUM 3300UF 20 25V RADIAL |
| Manufacturer | Nichicon |
| Series | UPA |
| Part Status | Active |
| Capacitance | 3300µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.346A @ 120Hz |
| Ripple Current @ High Frequency | 2.76A @ 100kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
