Product Introduction
UBC1H471MNS1MS
- Part Number
- UBC1H471MNS1MS
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 470UF 20 50V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UBC
- Quantity
- 179pcs Stock Available.

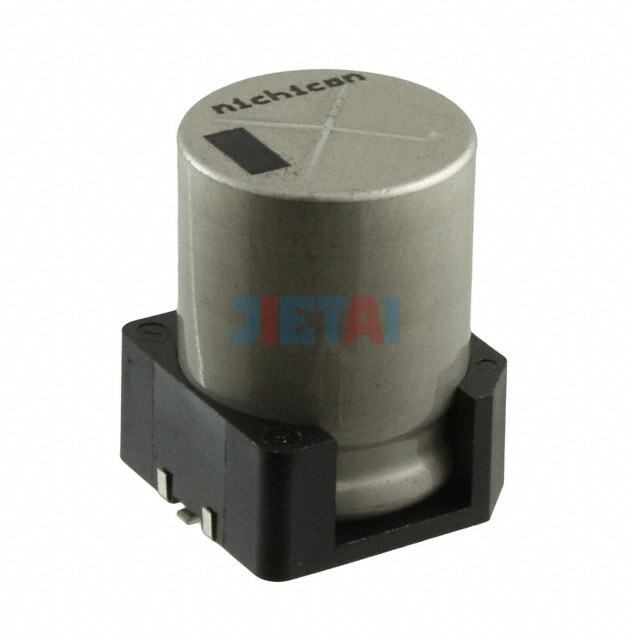

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UBC1H471MNS1MS |
| Datasheet | UBC1H471MNS1MS datasheet |
| Description | CAP ALUM 470UF 20 50V SMD |
| Manufacturer | Nichicon |
| Series | UBC |
| Part Status | Active |
| Capacitance | 470µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 569.5mA @ 120Hz |
| Ripple Current @ High Frequency | 850mA @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
