Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UCP2G181MHD
Product Introduction
UCP2G181MHD
- Part Number
- UCP2G181MHD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 180UF 20 400V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UCP
- Quantity
- 345pcs Stock Available.

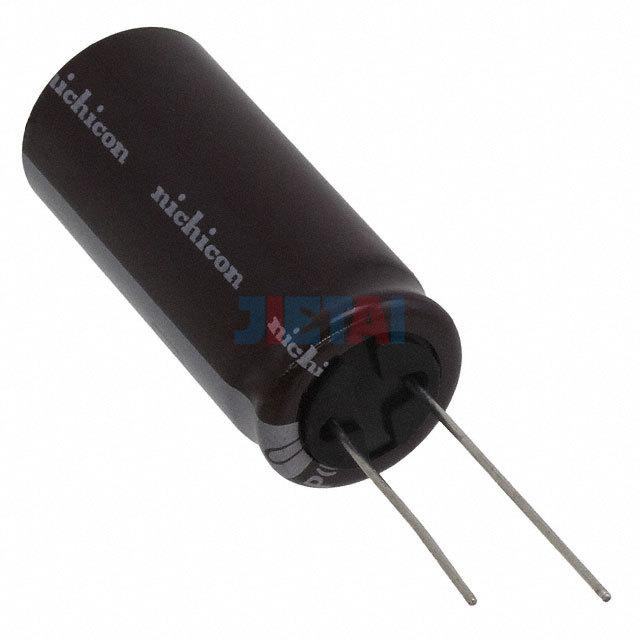

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UCP2G181MHD |
| Datasheet | UCP2G181MHD datasheet |
| Description | CAP ALUM 180UF 20 400V RADIAL |
| Manufacturer | Nichicon |
| Series | UCP |
| Part Status | Active |
| Capacitance | 180µF |
| Tolerance | ±20% |
| Voltage - Rated | 400V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.06A @ 120Hz |
| Ripple Current @ High Frequency | 1.59A @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
