Product Introduction
CIGT201210UHR24MNE
- Part Number
- CIGT201210UHR24MNE
- Manufacturer/Brand
- Samsung Electro-Mechanics
- Description
- FIXED IND 240NH 4.4A 22MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CIGT
- Quantity
- 15187pcs Stock Available.

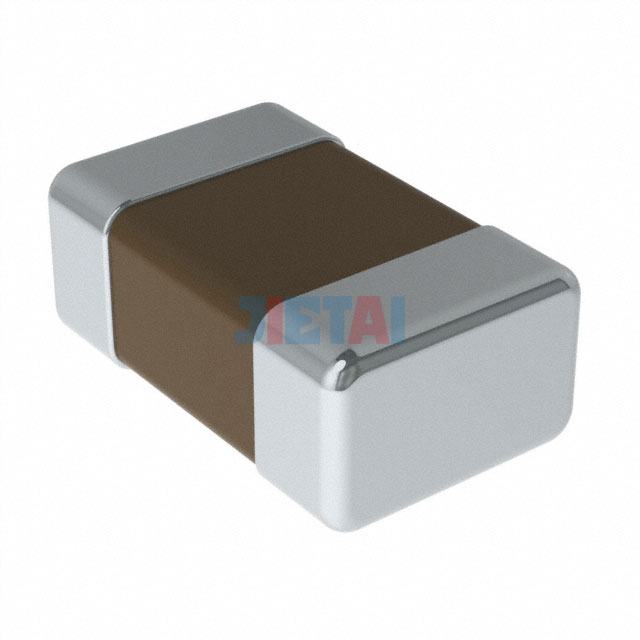

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CIGT201210UHR24MNE |
| Datasheet | CIGT201210UHR24MNE datasheet |
| Description | FIXED IND 240NH 4.4A 22MOHM SMD |
| Manufacturer | Samsung Electro-Mechanics |
| Series | CIGT |
| Part Status | Active |
| Type | Thin Film |
| Material - Core | Metal Composite |
| Inductance | 240nH |
| Tolerance | ±20% |
| Current Rating | 4.4A |
| Current - Saturation | 6.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 22 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
