Product Introduction
MS24265R22B55PY
- Part Number
- MS24265R22B55PY
- Manufacturer/Brand
- Cinch Connectivity Solutions
- Description
- 26500 55C 5520 PIN RECP
- Category
- Circular Connectors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Military, MIL-DTL-26500
- Quantity
- 2346pcs Stock Available.

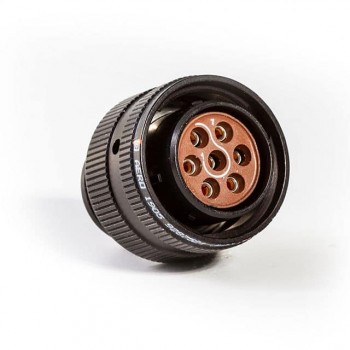

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MS24265R22B55PY |
| Datasheet | MS24265R22B55PY datasheet |
| Description | 26500 55C 5520 PIN RECP |
| Manufacturer | Cinch Connectivity Solutions |
| Series | Military, MIL-DTL-26500 |
| Part Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 55 (Power) |
| Shell Size - Insert | 22-55 |
| Shell Size, MIL | H |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Orientation | Y |
| Shell Material | Aluminum |
| Shell Finish | Anodized |
| Contact Finish - Mating | Gold |
| Color | - |
| Ingress Protection | Environment Sealed |
| Material Flammability Rating | - |
| Features | - |
| Shielding | Unshielded |
| Current Rating | - |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 200°C |
