Product Introduction
SR05.TCT
- Part Number
- SR05.TCT
- Manufacturer/Brand
- Semtech Corporation
- Description
- TVS DIODE 5V 20V SOT143-4
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- RailClamp®, SR
- Quantity
- 12127pcs Stock Available.

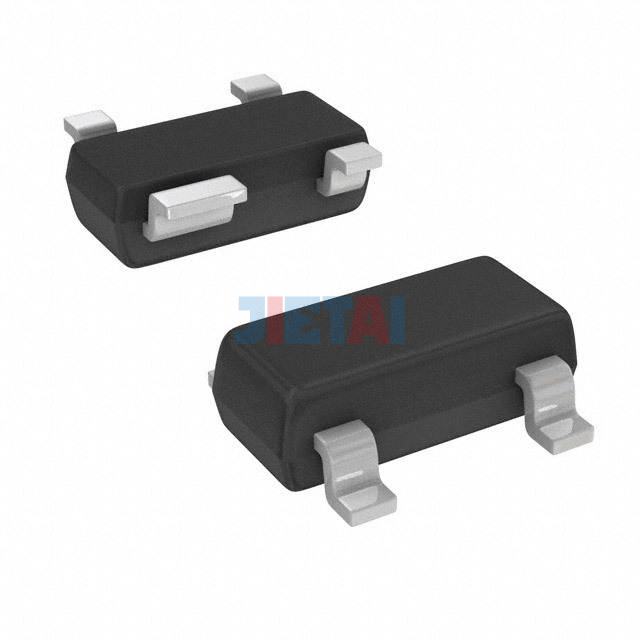

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SR05.TCT |
| Datasheet | SR05.TCT datasheet |
| Description | TVS DIODE 5V 20V SOT143-4 |
| Manufacturer | Semtech Corporation |
| Series | RailClamp®, SR |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 2 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse (10/1000µs) | 25A (8/20µs) |
| Power - Peak Pulse | 500W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 6pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-253-4, TO-253AA |
| Supplier Device Package | SOT-143-4 |
