Product Introduction
FOD819
- Part Number
- FOD819
- Manufacturer/Brand
- ON Semiconductor
- Description
- 4PB TR DIP
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 2111pcs Stock Available.

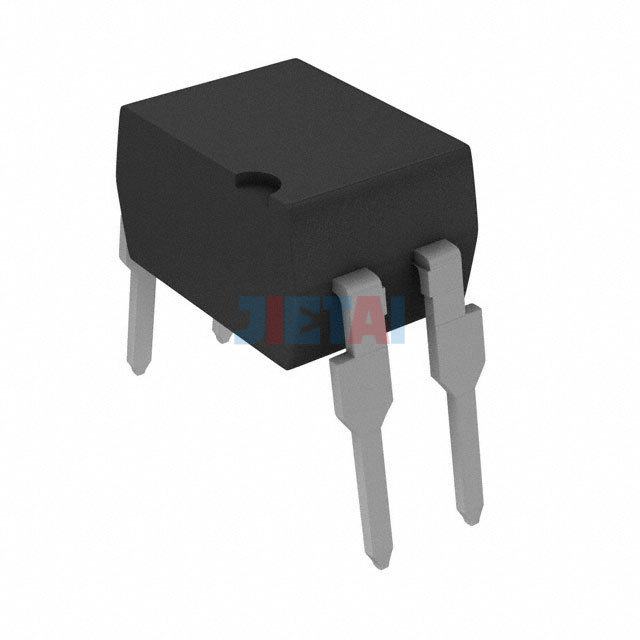

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | FOD819 |
| Datasheet | FOD819 datasheet |
| Description | 4PB TR DIP |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 100% @ 1.5mA |
| Current Transfer Ratio (Max) | 600% @ 1.5mA |
| Turn On / Turn Off Time (Typ) | 18µs, 18µs |
| Rise / Fall Time (Typ) | 12µs, 20µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-PDIP |
