Home / Products / Capacitors / Aluminum Electrolytic Capacitors / LGN2H121MELZ45
Product Introduction
LGN2H121MELZ45
- Part Number
- LGN2H121MELZ45
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 120UF 20 500V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LGN
- Quantity
- 213pcs Stock Available.

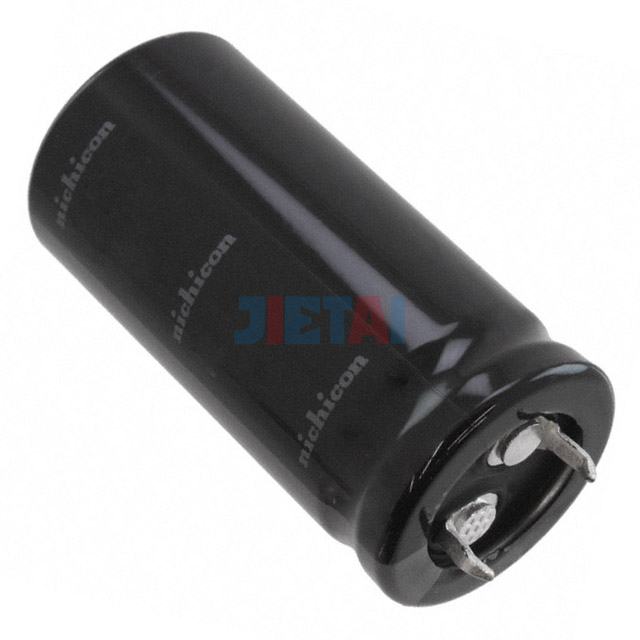

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LGN2H121MELZ45 |
| Datasheet | LGN2H121MELZ45 datasheet |
| Description | CAP ALUM 120UF 20 500V SNAP |
| Manufacturer | Nichicon |
| Series | LGN |
| Part Status | Active |
| Capacitance | 120µF |
| Tolerance | ±20% |
| Voltage - Rated | 500V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 680mA @ 120Hz |
| Ripple Current @ High Frequency | 972.4mA @ 50kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
