Product Introduction
C0805C109DBGAC7800
- Part Number
- C0805C109DBGAC7800
- Manufacturer/Brand
- KEMET
- Description
- CAP CER 1PF 630V NP0 0805
- Category
- Ceramic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SMD Comm C0G HV
- Quantity
- 2694pcs Stock Available.

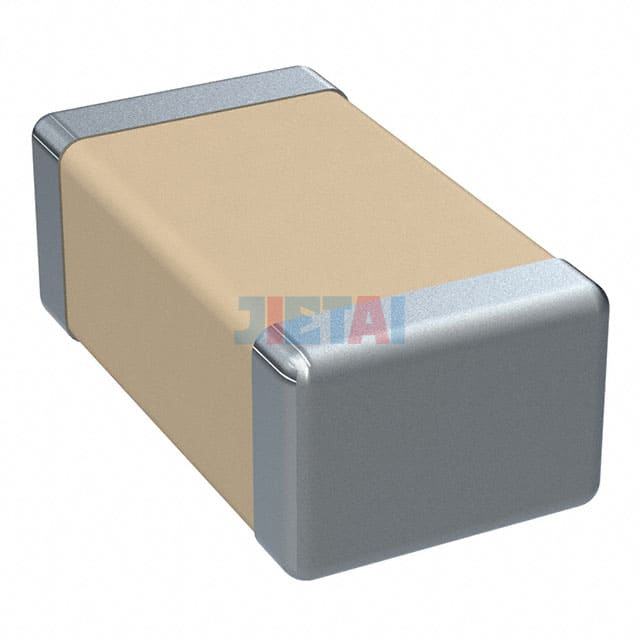

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | C0805C109DBGAC7800 |
| Datasheet | C0805C109DBGAC7800 datasheet |
| Description | CAP CER 1PF 630V NP0 0805 |
| Manufacturer | KEMET |
| Series | SMD Comm C0G HV |
| Part Status | Active |
| Capacitance | 1pF |
| Tolerance | ±0.5pF |
| Voltage - Rated | 630V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL, High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.055" (1.40mm) |
| Lead Spacing | - |
| Lead Style | - |
