Product Introduction
UVY2V4R7MPD
- Part Number
- UVY2V4R7MPD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 4.7UF 20 350V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UVY
- Quantity
- 3721pcs Stock Available.

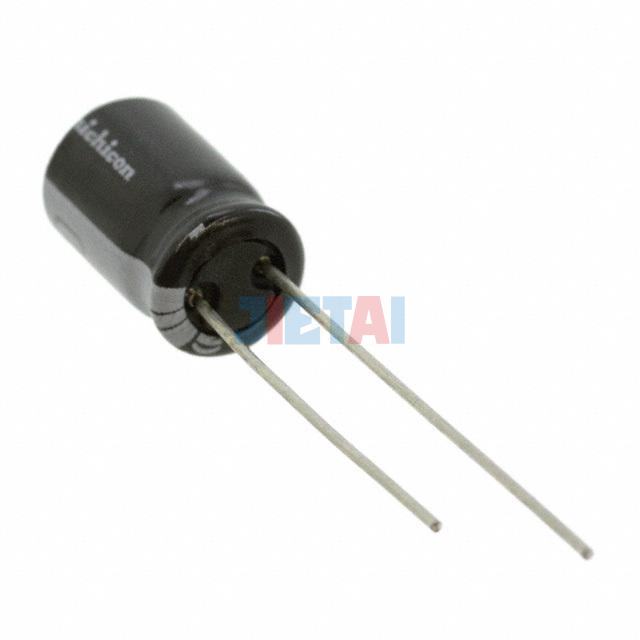

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UVY2V4R7MPD |
| Datasheet | UVY2V4R7MPD datasheet |
| Description | CAP ALUM 4.7UF 20 350V RADIAL |
| Manufacturer | Nichicon |
| Series | UVY |
| Part Status | Active |
| Capacitance | 4.7µF |
| Tolerance | ±20% |
| Voltage - Rated | 350V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 39mA @ 120Hz |
| Ripple Current @ High Frequency | 62.4mA @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
