Product Introduction
DCX144EUQ-7-F
- Part Number
- DCX144EUQ-7-F
- Manufacturer/Brand
- Diodes Incorporated
- Description
- PREBIAS TRANSISTOR SOT363 TR 3K
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 20pcs Stock Available.

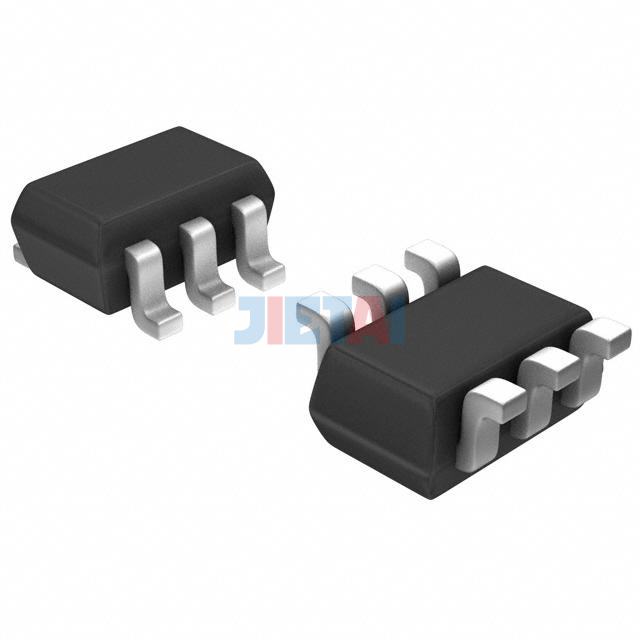

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | DCX144EUQ-7-F |
| Datasheet | DCX144EUQ-7-F datasheet |
| Description | PREBIAS TRANSISTOR SOT363 TR 3K |
| Manufacturer | Diodes Incorporated |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 47 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 68 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA (ICBO) |
| Frequency - Transition | 250MHz |
| Power - Max | 200mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
