Product Introduction
HVCB1206JTD1G00
- Part Number
- HVCB1206JTD1G00
- Manufacturer/Brand
- Stackpole Electronics Inc
- Description
- RES 1G OHM 5 1/3W 1206
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HVC
- Quantity
- 11pcs Stock Available.

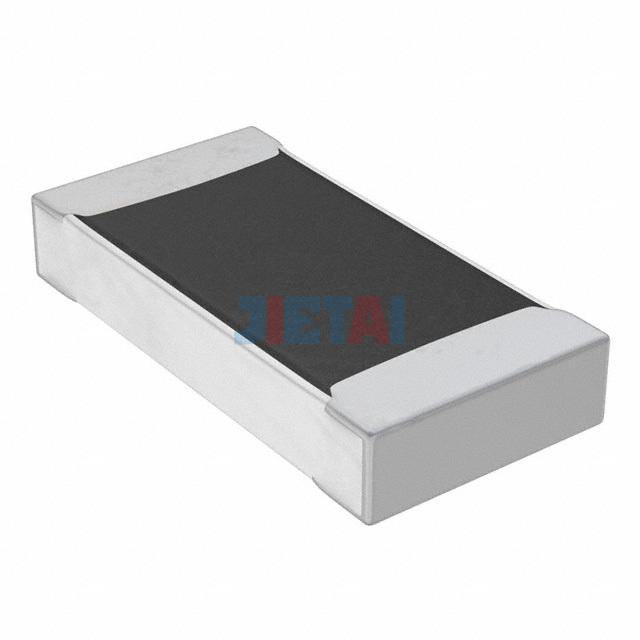

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HVCB1206JTD1G00 |
| Datasheet | HVCB1206JTD1G00 datasheet |
| Description | RES 1G OHM 5 1/3W 1206 |
| Manufacturer | Stackpole Electronics Inc |
| Series | HVC |
| Part Status | Active |
| Resistance | 1 GOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Thick Film |
| Features | High Voltage, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
