Product Introduction

PC3H710NIP1B

Part Number
PC3H710NIP1B
Manufacturer/Brand
Sharp Microelectronics
Description
OPTOISO 2.5KV TRANS MINI-FLAT
Category
Optoisolators - Transistor, Photovoltaic Output
RoHs Status
Lead free / RoHS Compliant
Series
-
Quantity
3227pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

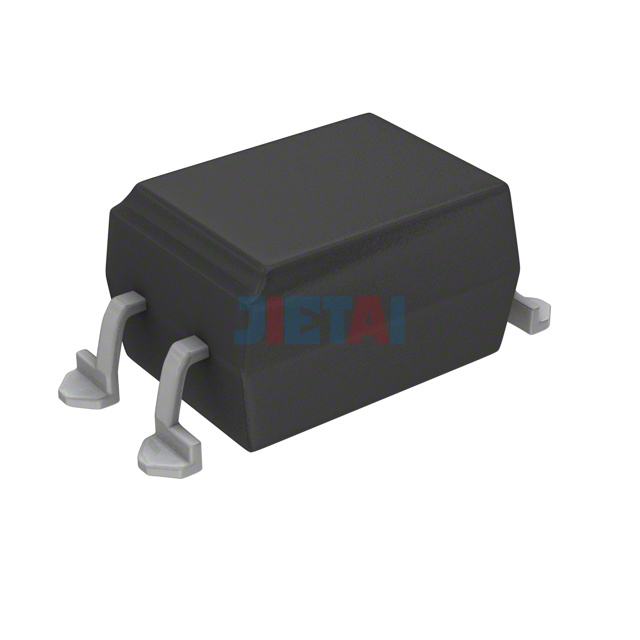

Images are for reference only
See Product Specifications

Product Specifications

Part Number PC3H710NIP1B
Datasheet PC3H710NIP1B datasheet
Description OPTOISO 2.5KV TRANS MINI-FLAT
Manufacturer Sharp Microelectronics
Series -
Part Status Discontinued at Digi-Key
Number of Channels 1
Voltage - Isolation 2500Vrms
Current Transfer Ratio (Min) -
Current Transfer Ratio (Max) -
Turn On / Turn Off Time (Typ) -
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 10mA
Vce Saturation (Max) 200mV
Operating Temperature -30°C ~ 100°C
Mounting Type Surface Mount
Package / Case 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package 4-Mini-Flat
