Product Introduction
PC364N
- Part Number
- PC364N
- Manufacturer/Brand
- Sharp Microelectronics
- Description
- OPTOISO 3.75KV TRANS 4-MINI-FLAT
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 2795pcs Stock Available.

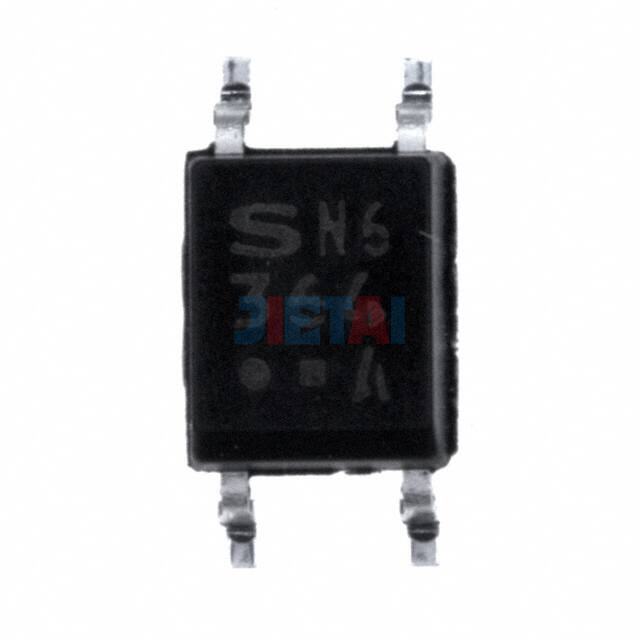

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PC364N |
| Datasheet | PC364N datasheet |
| Description | OPTOISO 3.75KV TRANS 4-MINI-FLAT |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 500µA |
| Current Transfer Ratio (Max) | 400% @ 500µA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 10mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-Mini-Flat |
