Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UMW0G470MDD1TP
Product Introduction
UMW0G470MDD1TP
- Part Number
- UMW0G470MDD1TP
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 47UF 20 4V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UMW
- Quantity
- 4183pcs Stock Available.

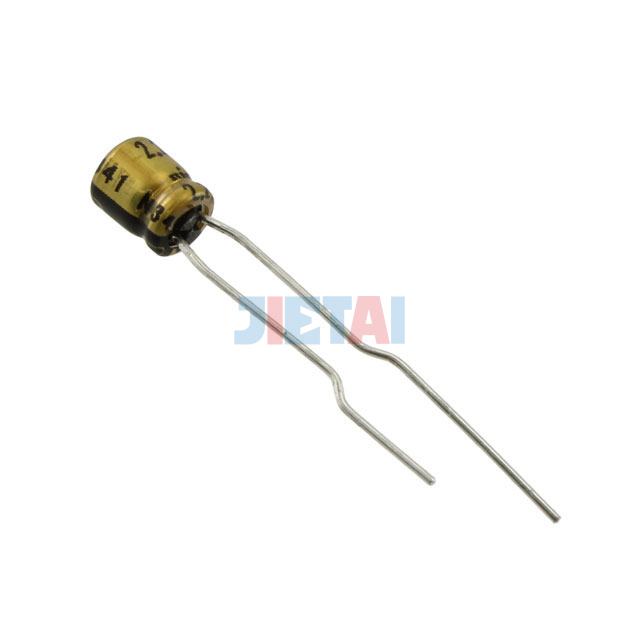

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UMW0G470MDD1TP |
| Datasheet | UMW0G470MDD1TP datasheet |
| Description | CAP ALUM 47UF 20 4V RADIAL |
| Manufacturer | Nichicon |
| Series | UMW |
| Part Status | Active |
| Capacitance | 47µF |
| Tolerance | ±20% |
| Voltage - Rated | 4V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 33mA @ 120Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
