Home / Products / Circuit Protection / TVS - Diodes / ESD5004MXTBG
Product Introduction
ESD5004MXTBG
- Part Number
- ESD5004MXTBG
- Manufacturer/Brand
- ON Semiconductor
- Description
- TVS DIODE 3.3V 9.1V 4X3DFN
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 7pcs Stock Available.

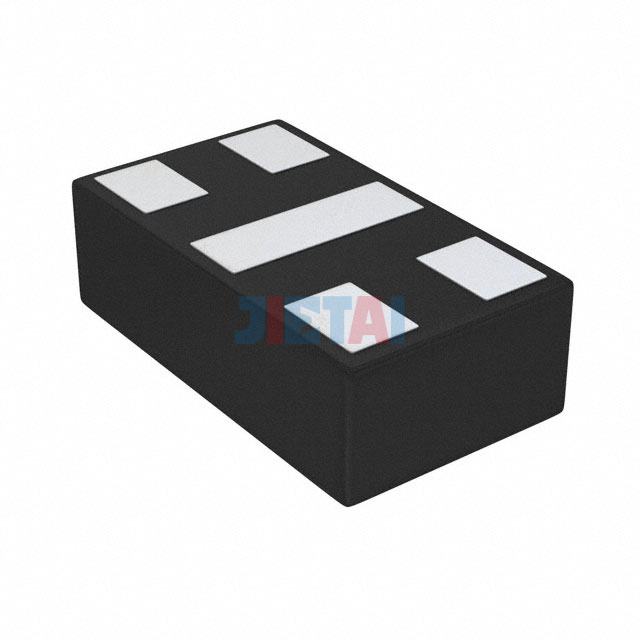

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ESD5004MXTBG |
| Datasheet | ESD5004MXTBG datasheet |
| Description | TVS DIODE 3.3V 9.1V 4X3DFN |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.9V |
| Voltage - Clamping (Max) @ Ipp | 9.1V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 3.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFDFN Exposed Pad |
| Supplier Device Package | 4-X3DFN (0.53x0.93) |
