Product Introduction
1688230
- Part Number
- 1688230
- Manufacturer/Brand
- Phoenix Contact
- Description
- CONN DSUB RCPT 7POS STR SLDR CUP
- Category
- D-Sub Connectors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PLUSCON
- Quantity
- 185pcs Stock Available.

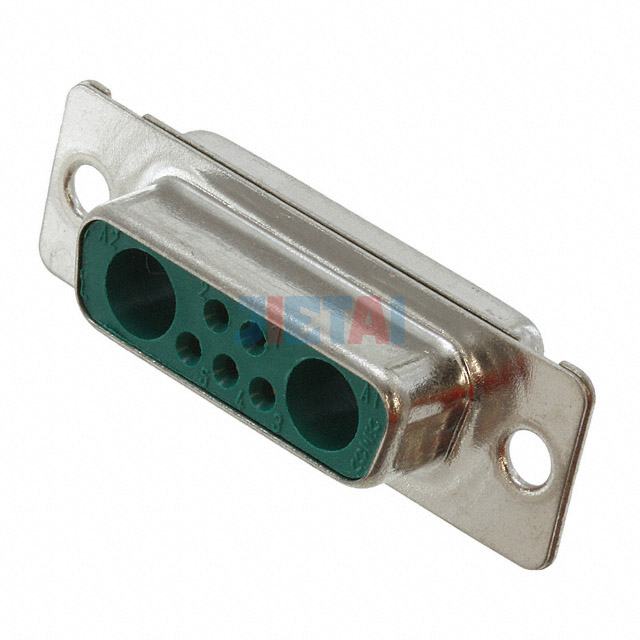

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 1688230 |
| Datasheet | 1688230 datasheet |
| Description | CONN DSUB RCPT 7POS STR SLDR CUP |
| Manufacturer | Phoenix Contact |
| Series | PLUSCON |
| Part Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 7 (5 + 2 Coax or Power) |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Contact Type | Signal and Coax or Power (Not Included) |
| Mounting Type | Free Hanging (In-Line) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Features | - |
| Shell Material, Finish | Steel, Yellow Chromate Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating | 5A |
| Operating Temperature | -55°C ~ 125°C |
