Product Introduction
NUP2201MR6T1
- Part Number
- NUP2201MR6T1
- Manufacturer/Brand
- ON Semiconductor
- Description
- TVS DIODE 5V 20V 6TSOP
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 3568pcs Stock Available.

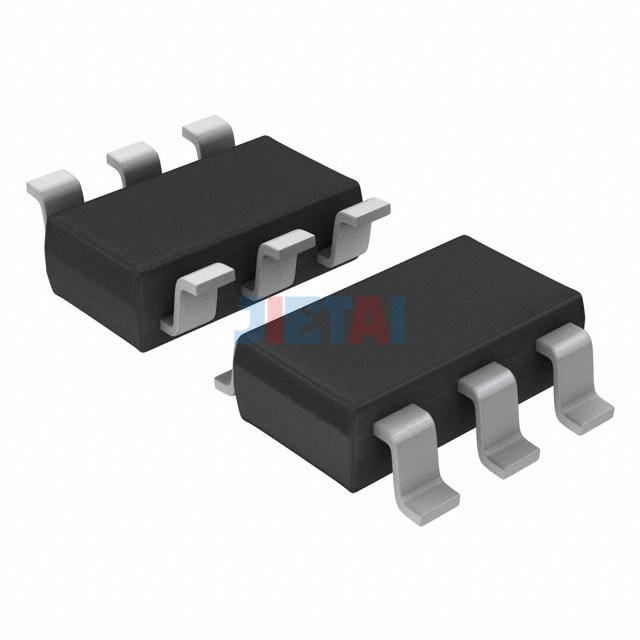

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NUP2201MR6T1 |
| Datasheet | NUP2201MR6T1 datasheet |
| Description | TVS DIODE 5V 20V 6TSOP |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Obsolete |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 2 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse (10/1000µs) | 8A (8/20µs) |
| Power - Peak Pulse | 500W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
