Home / Products / Circuit Protection / TVS - Diodes / MMBZ9V1AL-7
Product Introduction
MMBZ9V1AL-7
- Part Number
- MMBZ9V1AL-7
- Manufacturer/Brand
- Diodes Incorporated
- Description
- TVS DIODE 6V 14V SOT23-3
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 9850pcs Stock Available.

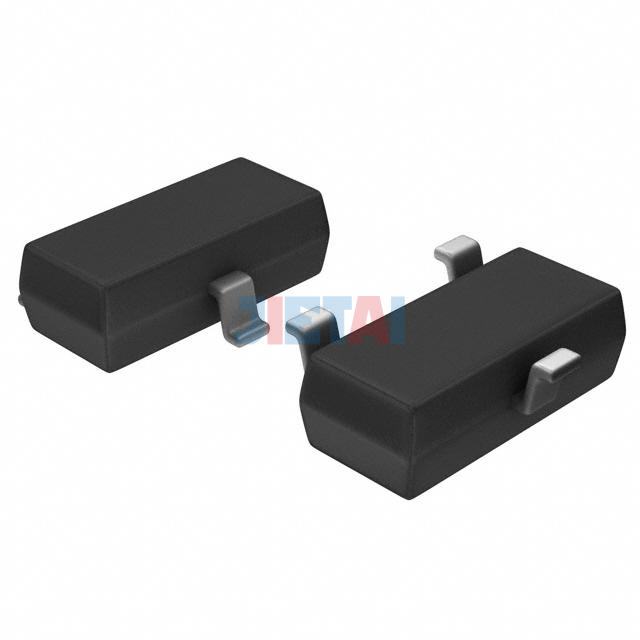

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MMBZ9V1AL-7 |
| Datasheet | MMBZ9V1AL-7 datasheet |
| Description | TVS DIODE 6V 14V SOT23-3 |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Part Status | Discontinued at Digi-Key |
| Type | Zener |
| Unidirectional Channels | 2 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6V |
| Voltage - Breakdown (Min) | 8.65V |
| Voltage - Clamping (Max) @ Ipp | 14V |
| Current - Peak Pulse (10/1000µs) | 1.7A |
| Power - Peak Pulse | 24W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
