Product Introduction
16MXC8200MEFCSN22X25
- Part Number
- 16MXC8200MEFCSN22X25
- Manufacturer/Brand
- Rubycon
- Description
- CAP ALUM 8200UF 20 16V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MXC
- Quantity
- 46pcs Stock Available.

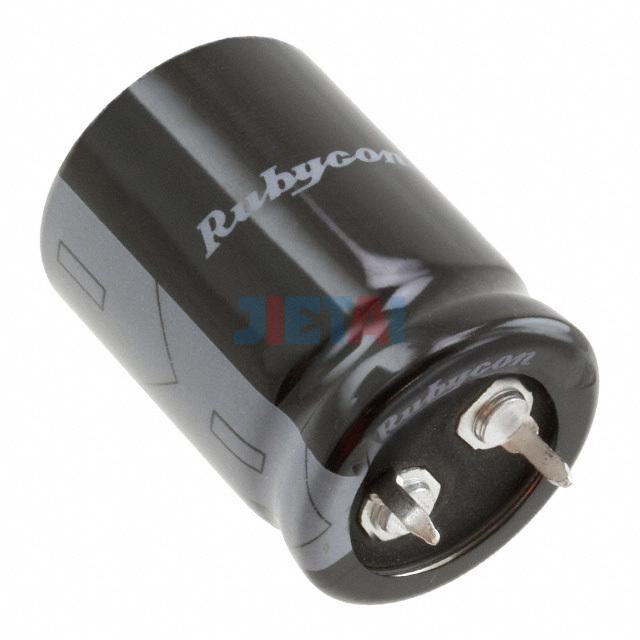

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 16MXC8200MEFCSN22X25 |
| Datasheet | 16MXC8200MEFCSN22X25 datasheet |
| Description | CAP ALUM 8200UF 20 16V SNAP |
| Manufacturer | Rubycon |
| Series | MXC |
| Part Status | Active |
| Capacitance | 8200µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.08A @ 120Hz |
| Ripple Current @ High Frequency | 2.392A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
