Product Introduction
SMAJ550HE3_AIH
- Part Number
- SMAJ550HE3_AIH
- Manufacturer/Brand
- Vishay Semiconductor Diodes Division
- Description
- TVS DIODE 495V 760V DO214AC
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101, TransZorb®
- Quantity
- 49pcs Stock Available.

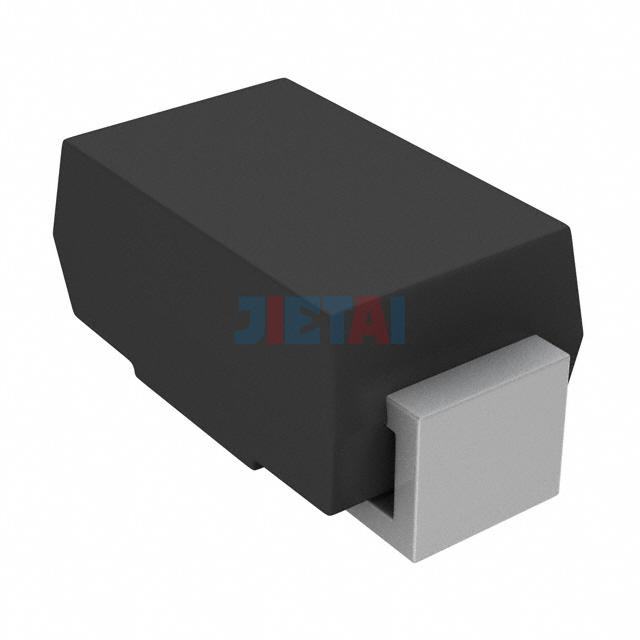

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SMAJ550HE3_AIH |
| Datasheet | SMAJ550HE3_AIH datasheet |
| Description | TVS DIODE 495V 760V DO214AC |
| Manufacturer | Vishay Semiconductor Diodes Division |
| Series | Automotive, AEC-Q101, TransZorb® |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 495V |
| Voltage - Breakdown (Min) | 550V |
| Voltage - Clamping (Max) @ Ipp | 760V |
| Current - Peak Pulse (10/1000µs) | 400mA |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 90pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
