Home / Products / Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets / PPPC182KFMS
Product Introduction
PPPC182KFMS
- Part Number
- PPPC182KFMS
- Manufacturer/Brand
- Sullins Connector Solutions
- Description
- CONN HDR 36POS 0.1 GOLD SMD
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 945pcs Stock Available.

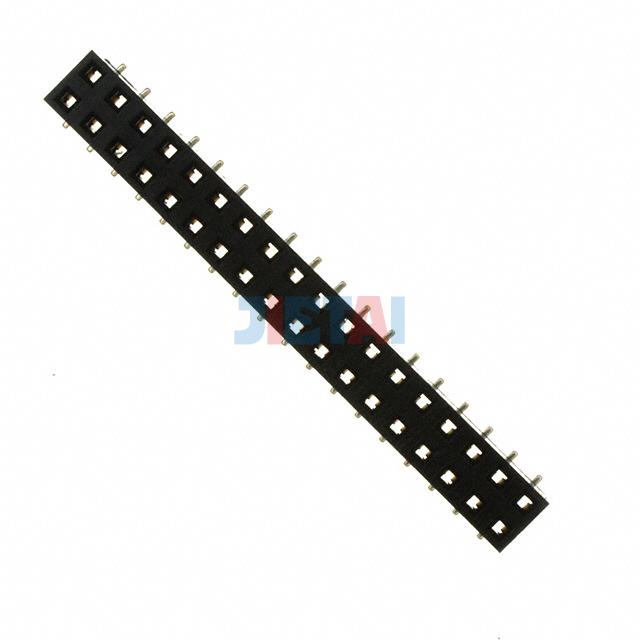

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PPPC182KFMS |
| Datasheet | PPPC182KFMS datasheet |
| Description | CONN HDR 36POS 0.1 GOLD SMD |
| Manufacturer | Sullins Connector Solutions |
| Series | - |
| Part Status | Obsolete |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.299" (7.60mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating | 3A |
| Voltage Rating | 250V |
