Product Introduction
PTN1206E1100BST1
- Part Number
- PTN1206E1100BST1
- Manufacturer/Brand
- Vishay Thin Film
- Description
- RES SMD 110 OHM 0.1 0.4W 1206
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PTN
- Quantity
- 26pcs Stock Available.

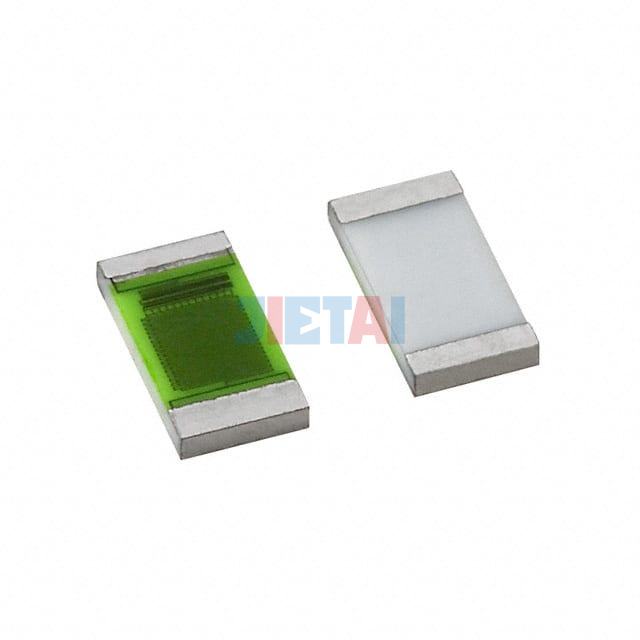

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PTN1206E1100BST1 |
| Datasheet | PTN1206E1100BST1 datasheet |
| Description | RES SMD 110 OHM 0.1 0.4W 1206 |
| Manufacturer | Vishay Thin Film |
| Series | PTN |
| Part Status | Active |
| Resistance | 110 Ohms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.4W, 2/5W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
