Product Introduction
HD64F3694FPIV
- Part Number
- HD64F3694FPIV
- Manufacturer/Brand
- Renesas Electronics America
- Description
- IC MCU 16BIT 32KB FLASH 64LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- H8® H8/300H Tiny
- Quantity
- 382pcs Stock Available.

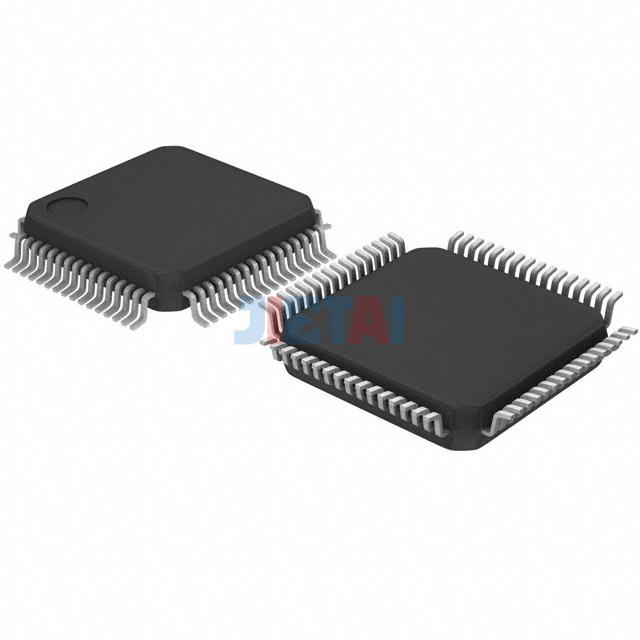

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HD64F3694FPIV |
| Datasheet | HD64F3694FPIV datasheet |
| Description | IC MCU 16BIT 32KB FLASH 64LQFP |
| Manufacturer | Renesas Electronics America |
| Series | H8® H8/300H Tiny |
| Part Status | Obsolete |
| Core Processor | H8/300H |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SCI |
| Peripherals | PWM, WDT |
| Number of I/O | 29 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 64-LQFP |
| Base Part Number | 64-LQFP (10x10) |
