Home / Products / Switches / Pushbutton Switches / 1241.6633.1122000
Product Introduction
1241.6633.1122000
- Part Number
- 1241.6633.1122000
- Manufacturer/Brand
- Schurter Inc.
- Description
- SWITCH PUSHBUTTON SPDT 5A 125V
- Category
- Pushbutton Switches
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MSM
- Quantity
- 183pcs Stock Available.

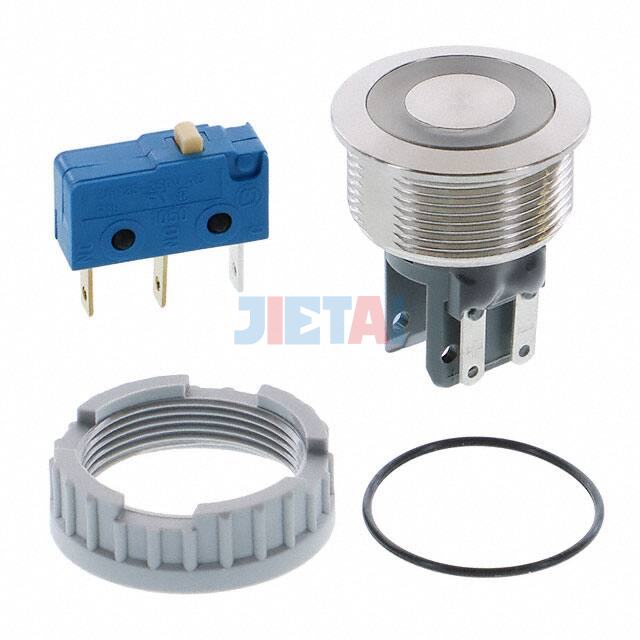

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 1241.6633.1122000 |
| Datasheet | 1241.6633.1122000 datasheet |
| Description | SWITCH PUSHBUTTON SPDT 5A 125V |
| Manufacturer | Schurter Inc. |
| Series | MSM |
| Part Status | Active |
| Type | Vandal Resistant, Illuminated |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating | 5A (AC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | - |
| Actuator Type | Round, Button, Flush |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2.1 VDC |
| Mounting Type | Panel Mount, Front |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP40 |
| Features | - |
| Panel Cutout Dimensions | Circular - 22.10mm Dia |
| Operating Temperature | -25°C ~ 85°C |
