Home / Products / Inductors, Coils, Chokes / Fixed Inductors / AISC-0805HQ-39NJ-T
Product Introduction
AISC-0805HQ-39NJ-T
- Part Number
- AISC-0805HQ-39NJ-T
- Manufacturer/Brand
- Abracon LLC
- Description
- FIXED IND 39NH 1.1A 110 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- AISC-0805HQ
- Quantity
- 11pcs Stock Available.

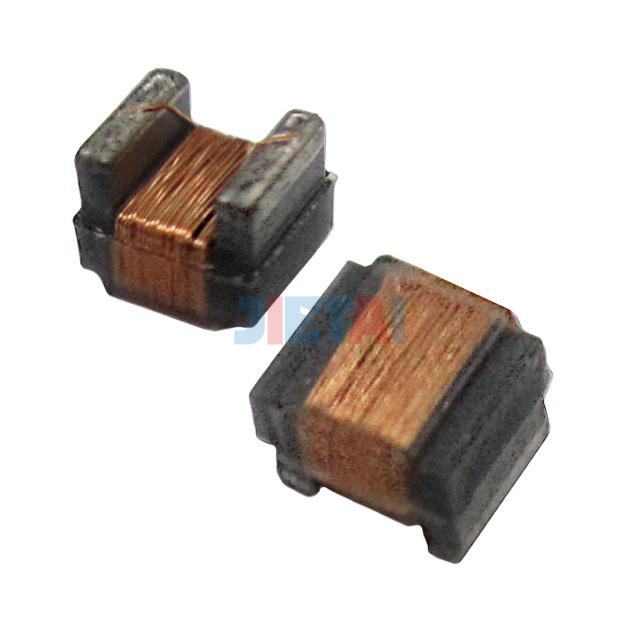

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | AISC-0805HQ-39NJ-T |
| Datasheet | AISC-0805HQ-39NJ-T datasheet |
| Description | FIXED IND 39NH 1.1A 110 MOHM SMD |
| Manufacturer | Abracon LLC |
| Series | AISC-0805HQ |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 39nH |
| Tolerance | ±5% |
| Current Rating | 1.1A |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110 mOhm Max |
| Q @ Freq | 65 @ 500MHz |
| Frequency - Self Resonant | 1.6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
