Product Introduction
UWT1C151MCL1GS
- Part Number
- UWT1C151MCL1GS
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 150UF 20 16V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UWT
- Quantity
- 1011pcs Stock Available.

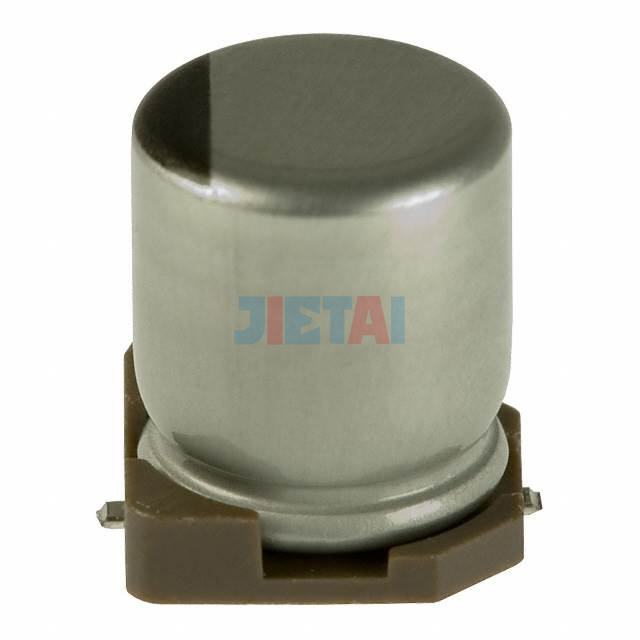

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UWT1C151MCL1GS |
| Datasheet | UWT1C151MCL1GS datasheet |
| Description | CAP ALUM 150UF 20 16V SMD |
| Manufacturer | Nichicon |
| Series | UWT |
| Part Status | Active |
| Capacitance | 150µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 95mA @ 120Hz |
| Ripple Current @ High Frequency | 142.5mA @ 10kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
