Home / Products / Inductors, Coils, Chokes / Fixed Inductors / CPL2508T4R7M
Product Introduction
CPL2508T4R7M
- Part Number
- CPL2508T4R7M
- Manufacturer/Brand
- TDK Corporation
- Description
- FIXED IND 4.7UH 430MA 550 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CPL
- Quantity
- 5865pcs Stock Available.

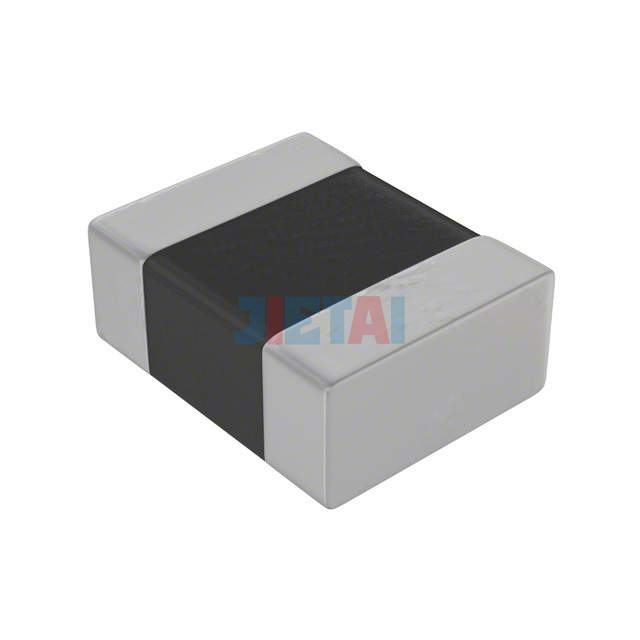

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CPL2508T4R7M |
| Datasheet | CPL2508T4R7M datasheet |
| Description | FIXED IND 4.7UH 430MA 550 MOHM |
| Manufacturer | TDK Corporation |
| Series | CPL |
| Part Status | Obsolete |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7µH |
| Tolerance | ±20% |
| Current Rating | 430mA |
| Current - Saturation | 430mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 715 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.098" L x 0.059" W (2.50mm x 1.50mm) |
| Height - Seated (Max) | 0.032" (0.80mm) |
