Product Introduction
NCP81071ADR2G
- Part Number
- NCP81071ADR2G
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC MOSFET DRIVER BUCK DUAL 8SOIC
- Category
- PMIC - Gate Drivers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 4pcs Stock Available.

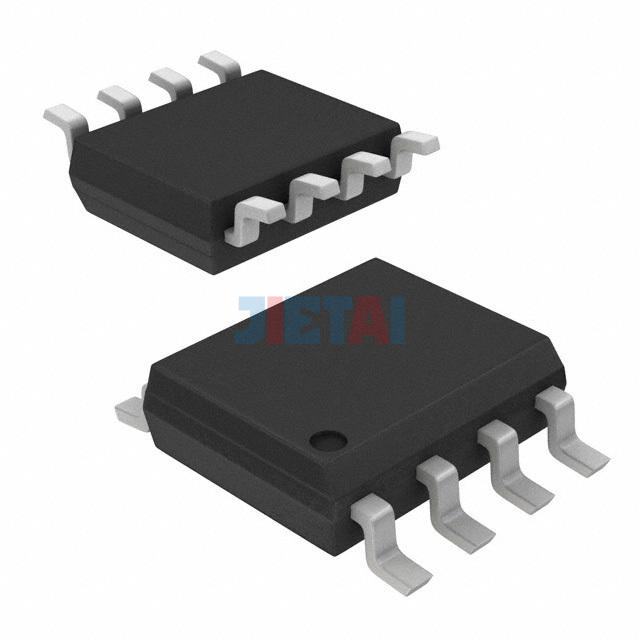

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NCP81071ADR2G |
| Datasheet | NCP81071ADR2G datasheet |
| Description | IC MOSFET DRIVER BUCK DUAL 8SOIC |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 1.2V, 1.8V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
