Product Introduction
P6SMB120AT3
- Part Number
- P6SMB120AT3
- Manufacturer/Brand
- ON Semiconductor
- Description
- TVS DIODE 102V 165V SMB
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 3668pcs Stock Available.

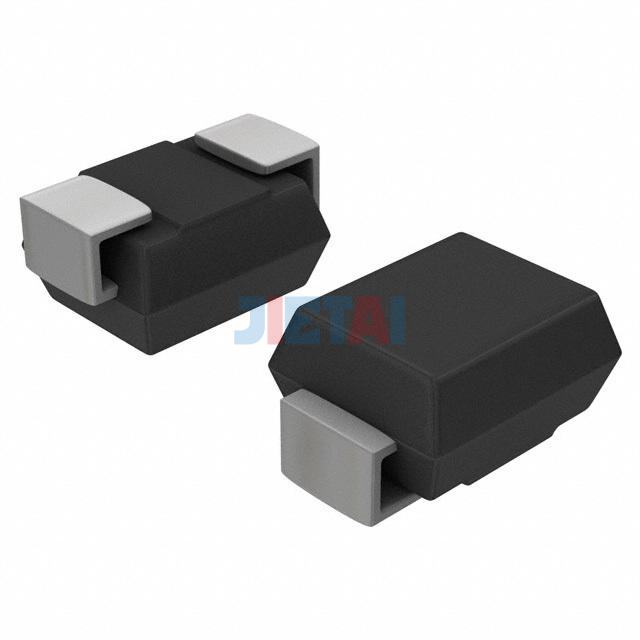

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | P6SMB120AT3 |
| Datasheet | P6SMB120AT3 datasheet |
| Description | TVS DIODE 102V 165V SMB |
| Manufacturer | ON Semiconductor |
| Series | Automotive, AEC-Q101 |
| Part Status | Obsolete |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 102V |
| Voltage - Breakdown (Min) | 114V |
| Voltage - Clamping (Max) @ Ipp | 165V |
| Current - Peak Pulse (10/1000µs) | 3.6A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 185pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
