Product Introduction
QSS-075-01-L-D-A-GP
- Part Number
- QSS-075-01-L-D-A-GP
- Manufacturer/Brand
- Samtec Inc.
- Description
- .635MM DOUBLE ROW HS SOCKET ASSE
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Q Strip® QSS
- Quantity
- 154pcs Stock Available.

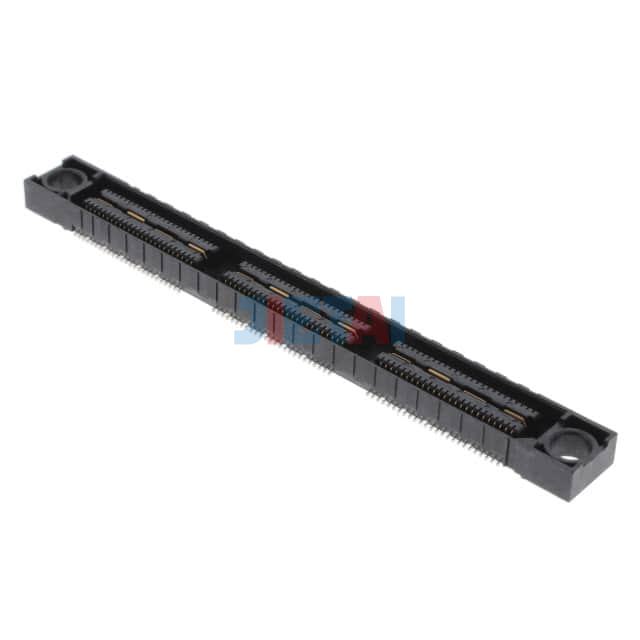

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | QSS-075-01-L-D-A-GP |
| Datasheet | QSS-075-01-L-D-A-GP datasheet |
| Description | .635MM DOUBLE ROW HS SOCKET ASSE |
| Manufacturer | Samtec Inc. |
| Series | Q Strip® QSS |
| Part Status | Active |
| Connector Type | Socket, Center Strip Contacts |
| Number of Positions | 150 |
| Pitch | 0.025" (0.64mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Ground Bus (Plane) |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Mated Stacking Heights | - |
| Height Above Board | 0.143" (3.63mm) |
