Home / Products / Capacitors / Aluminum Electrolytic Capacitors / LXZ50VB222M18X35LL
Product Introduction
LXZ50VB222M18X35LL
- Part Number
- LXZ50VB222M18X35LL
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 2200UF 20 50V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LXZ
- Quantity
- 1141pcs Stock Available.

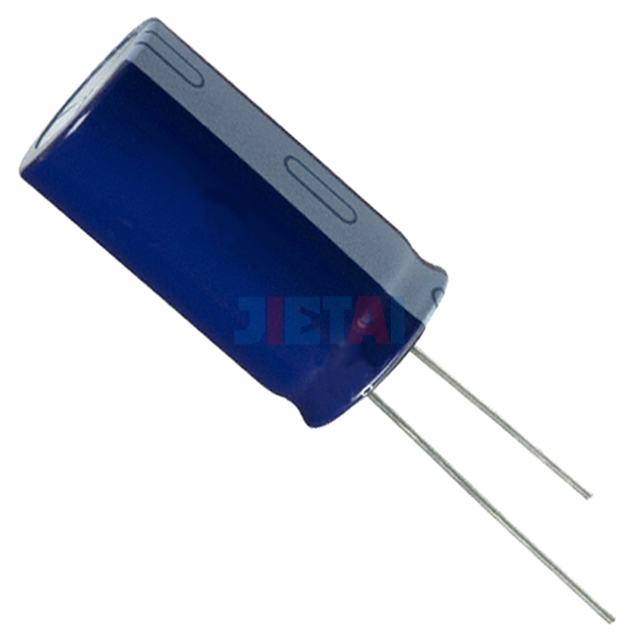

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LXZ50VB222M18X35LL |
| Description | CAP ALUM 2200UF 20 50V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | LXZ |
| Part Status | Obsolete |
| Capacitance | 2200µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.325A @ 120Hz |
| Ripple Current @ High Frequency | 3.1A @ 100kHz |
| Impedance | 23 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
