Product Introduction
YS5918PTO
- Part Number
- YS5918PTO
- Manufacturer/Brand
- Amphenol Advanced Sensors
- Description
- PTC RESET FUSE 120V RADIAL
- Category
- PTC Resettable Fuses
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PTO
- Quantity
- 349pcs Stock Available.

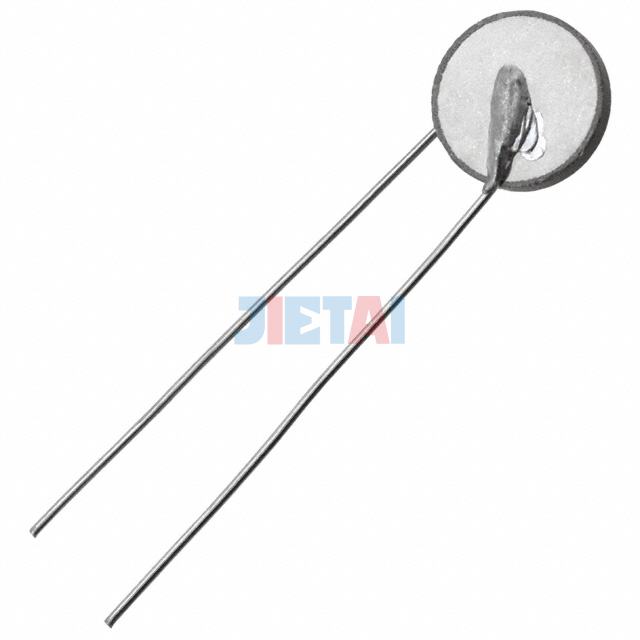

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | YS5918PTO |
| Datasheet | YS5918PTO datasheet |
| Description | PTC RESET FUSE 120V RADIAL |
| Manufacturer | Amphenol Advanced Sensors |
| Series | PTO |
| Part Status | Active |
| Type | Ceramic |
| Voltage - Max | 120V |
| Current - Max | - |
| Current - Hold (Ih) (Max) | - |
| Current - Trip (It) | - |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 25 Ohms |
| Operating Temperature | 10°C ~ 55°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.600" Dia x 0.220" T (15.24mm x 5.59mm) |
| Height - Seated (Max) | 0.600" (15.24mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.330" (8.38mm) |
