Product Introduction
HCMA0503-2R2-R
- Part Number
- HCMA0503-2R2-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 2.2UH 6.8A 25 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HCMA0503
- Quantity
- 12104pcs Stock Available.

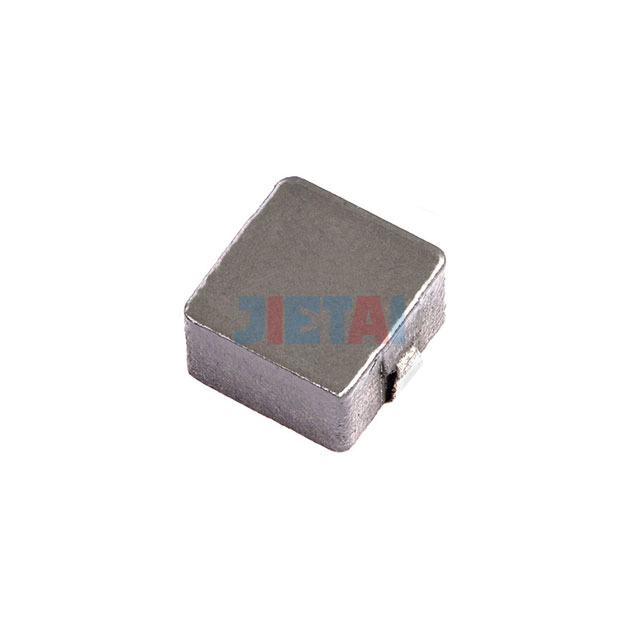

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HCMA0503-2R2-R |
| Datasheet | HCMA0503-2R2-R datasheet |
| Description | FIXED IND 2.2UH 6.8A 25 MOHM SMD |
| Manufacturer | Eaton - Electronics Division |
| Series | HCMA0503 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Iron Powder |
| Inductance | 2.2µH |
| Tolerance | ±20% |
| Current Rating | 6.8A |
| Current - Saturation | 6.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 25 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.203" L x 0.201" W (5.15mm x 5.10mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
