Product Introduction
MC56F8166VFVE
- Part Number
- MC56F8166VFVE
- Manufacturer/Brand
- NXP USA Inc.
- Description
- IC MCU 16BIT 512KB FLASH 144LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 56F8xxx
- Quantity
- 7529pcs Stock Available.

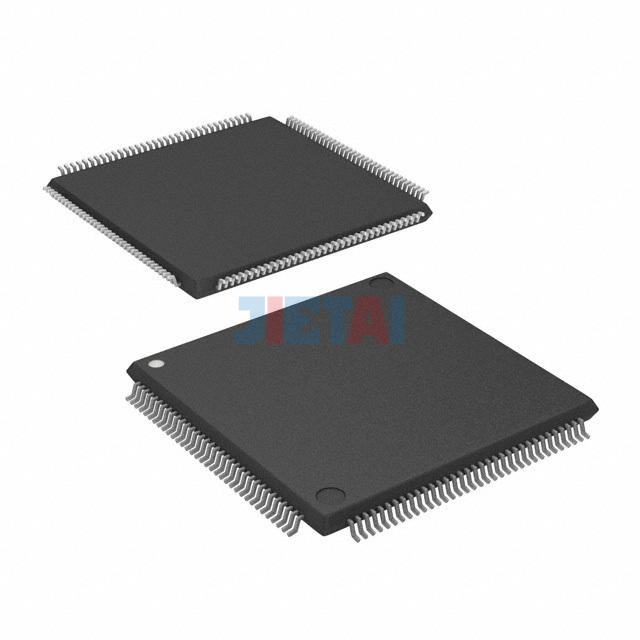

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MC56F8166VFVE |
| Datasheet | MC56F8166VFVE datasheet |
| Description | IC MCU 16BIT 512KB FLASH 144LQFP |
| Manufacturer | NXP USA Inc. |
| Series | 56F8xxx |
| Part Status | Obsolete |
| Core Processor | 56800E |
| Core Size | 16-Bit |
| Speed | 40MHz |
| Connectivity | EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 62 |
| Program Memory Size | 512KB (256K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 16 |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 144-LQFP |
| Base Part Number | 144-LQFP (20x20) |
